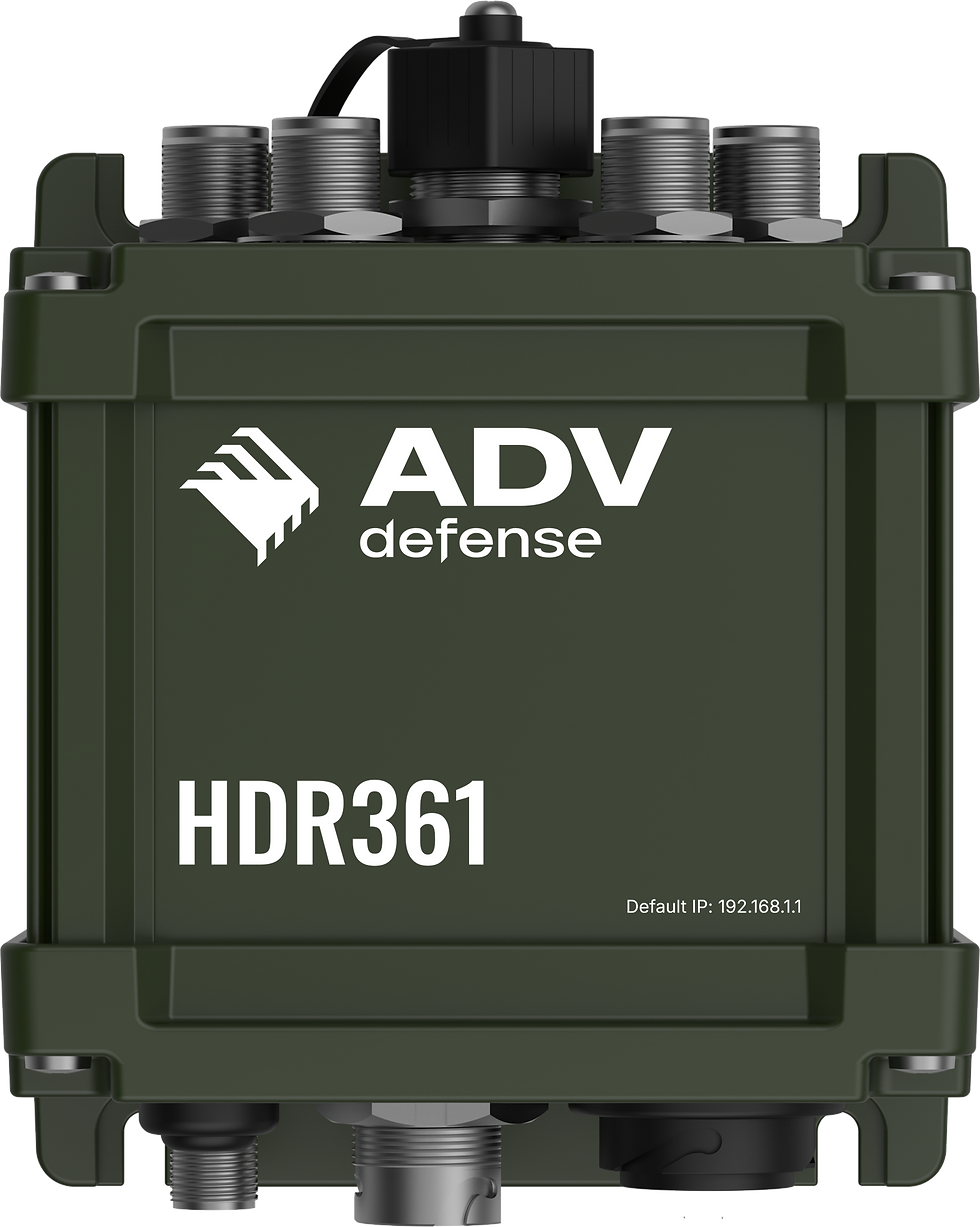

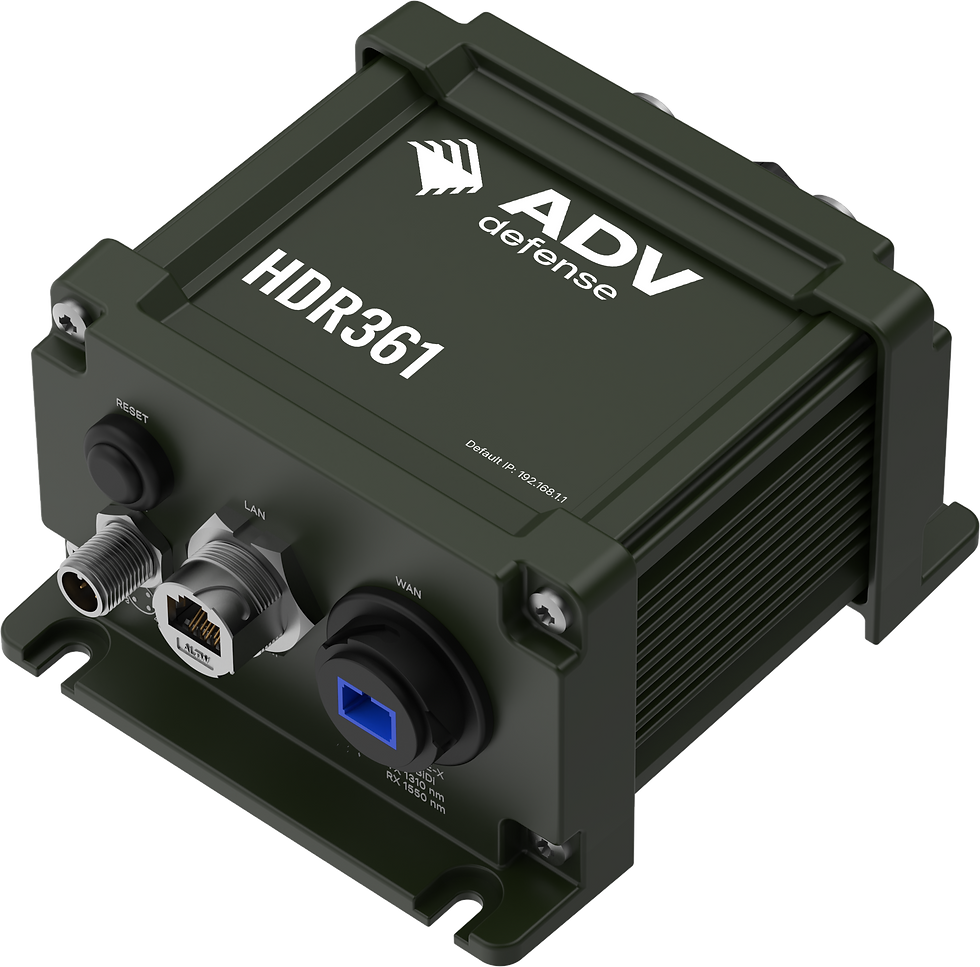

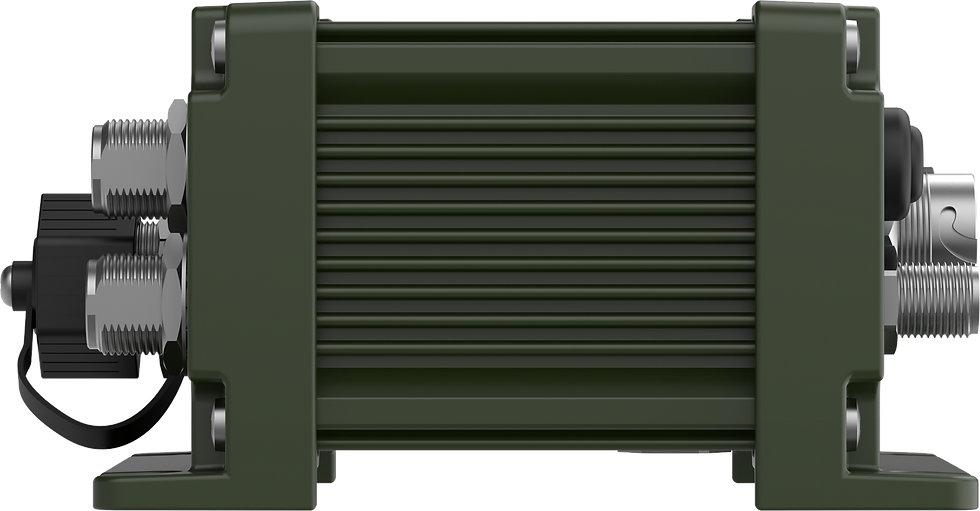

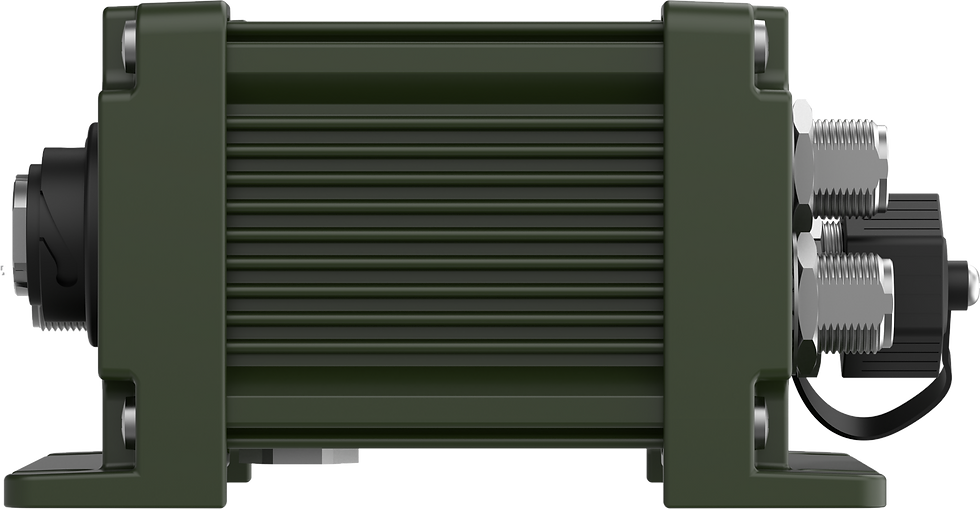

HDR361 Fiber
Rugged LTE Router with fiber optic
The HDR361 is a high-performance, ruggedized networking solution designed for mission-critical military applications. Built to withstand extreme conditions, this router ensures secure and reliable communication in the harshest environments.
HDR361 routers are manufactured in the European Union and have sophisticated hardware tested in thousands of applications
Durability & operation
Operating temperature: -40 °C to 75 °C
Ingress Protection Rating: IP67
Material: Extruded aluminum housing and die-cast or milled aluminum panels
Dimensions & Weight
Weight: 1000 g
Dimensions: 206,3 x 87 x 210/239 mm
Color: RAL6031
*different color available
Output & Power
Ethernet: 10/100Mbps, 1 x RJ45 (LAN), 1 x SC (WAN)
Input voltage range: 9 – 30 V DC, M12 A code 4 pin male
I/O: 1 x Digital Input, 1 x Digital Output
*Optional assembly as UART, 3,3V logic level
Consumption: Idle: < 2.4 W, Max: < 4.7 W
Mobile, Wireless, GPS
Mobile module: LTE CAT6, N-TYPE
SIM switch: 1 x 4FF SIM and 1 x eSIM, auto-switching
WiFi: 2,4Ghz MIMO, N-TYPE
GNSS: GPS, GLONASS, BeiDou, Galileo and QZSS, N-TYPE
*GNSS can be integrated upon request with minimal hardware changes, this may affect existing device interfaces
